The optical stack and the panel are a single design problem, and treating them as two produces the classic near-eye failure: an expensive lens system paired with a panel that cannot fill it, or a capable panel compromised by optics that were finalised first. A 0.32-inch 800x600 micro OLED with a 120 Hz refresh rate and I2C, RGB and MIPI interface options gives a design team enough flexibility to make the trade deliberately. The useful sequence is to fix the field of view and eye relief from the user experience, derive the optical magnification, and only then choose the panel that fills the image circle without waste.

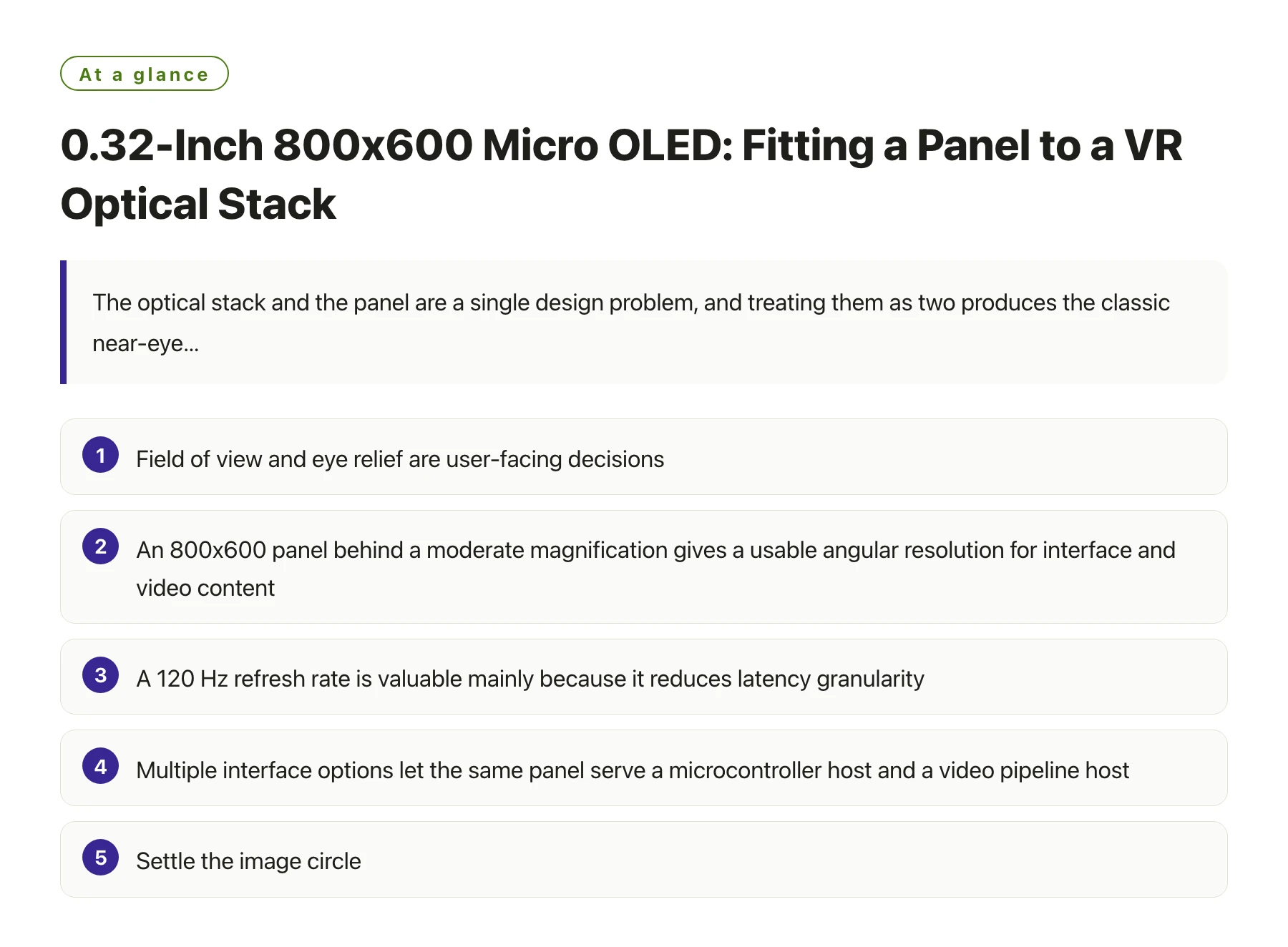

Key takeaways
- Field of view and eye relief are user-facing decisions; panel size follows from them through the optical magnification.
- An 800x600 panel behind a moderate magnification gives a usable angular resolution for interface and video content, but the number depends entirely on the field of view.
- A 120 Hz refresh rate is valuable mainly because it reduces latency granularity, not because users perceive individual frames.
- Multiple interface options let the same panel serve a microcontroller host and a video pipeline host, which simplifies product variants.
- Settle the image circle, back focal distance and panel position before any lens is cut.
Near-eye optics are unforgiving about geometry. The lens has a designed image circle and a back focal distance, and the panel has to sit inside both. If the panel is too large, light from its corners is vignetted. If it is too small, the image circle is underfilled and field of view is wasted.
That is why panel size is a derived quantity in a well-run project. The team starts from the field of view it wants, decides how far the eye should sit from the last surface, and works back to the magnification. The panel then has to match the resulting image height within tolerance.
This article works through that sequence using a 0.32-inch 800x600 micro OLED as the example, including the interface decision that is often treated as unrelated to optics but is not, because the interface sets how much board area and cable the temple has to carry.
Deriving the panel from the experience
The first two numbers to fix are the field of view and eye relief, because both are felt by the user. Field of view determines how immersive the image is and how much the eye has to move to see the edges. Eye relief determines whether the device works over glasses and whether the eyelashes touch anything.
Given those, the optics fix a magnification and an image circle, and the panel has to fill the image circle without spilling beyond it. A panel with the wrong aspect ratio or a marginally larger diagonal will waste light and may introduce vignetting that is difficult to correct after the fact.
Only at that point does pixel count become a meaningful discussion. The question is not how many pixels the panel has but how much angle each pixel covers, because that is what the eye resolves. Widen the field of view with the same pixel count and each pixel covers more angle, so fine text becomes harder to read even though nothing about the panel changed [1].
The decisions, and the order they belong in
| Decision | What it determines | When to lock it |
|---|---|---|
| Field of view | Immersiveness, and the angular size each pixel covers | Before any optical design work starts |
| Eye relief | Compatibility with glasses, comfort, and the minimum optical path length | With the field of view, because the two trade against each other |
| Image circle and back focal distance | The panel size and position the mechanics must accommodate | Before the housing geometry is fixed |
| Panel pixel count and size | Angular resolution and whether the image circle is filled efficiently | After the optical parameters, not before |
| Refresh rate | Latency granularity and how well motion is tracked [2] | With the rendering pipeline, so both are designed to the same budget |
| Interface and host architecture | Board area, cable count and where timing is owned | Before the temple is routed |
Where panel and optics disagree
Most integration problems in near-eye designs show up as one of three symptoms: corners that are dim, an image that is sharp in the centre and soft at the edges, or a device that is thicker than the concept sketch. All three are usually geometry problems that were decided in the wrong order.
Vignetting is a size problem
If the panel extends beyond the image circle of the lens, the corners lose light. The effect is often acceptable in the centre and obvious at the edges, which makes it easy to attribute to the panel's own uniformity when the cause is geometric. Measuring the whole chain, rather than the panel alone, separates the two.
The correction is either a smaller active area, a larger lens, or accepting a reduced field of view. All three are cheaper before tooling than after.
A 120 Hz panel is about latency, not smoothness
A faster refresh shortens the granularity with which the system can respond to head motion, which reduces the delay between movement and a corresponding change in the image. That is the main practical benefit in a headset, and it only materialises if the rendering pipeline and the sensors can keep up.
It follows that buying a faster panel without adjusting the pipeline gives little. The measurement to make is end-to-end latency with the whole system running, and the improvement to look for is a reduction in that number, not a higher figure on the datasheet.
Interface choice has mechanical consequences
The link between host and panel determines how many conductors run through the hinge and how much board area the display path occupies. A parallel interface may be simple to drive but needs many lines; a serial link needs few but requires a host that can produce the timing. A panel offering several interface options lets one product design serve several host variants without changing the optics or the mechanics.
Choosing a 0.32" RGB Micro OLED display module therefore fixes more than the display: it fixes the wiring, the board area and the timing architecture that the rest of the headset has to accommodate.
Build a mechanical mock of the optical stack with a real panel footprint before cutting any lens. Checking that the panel sits at the right distance, fills the image circle and leaves clearance for its connector costs a day. Discovering the same problem after tooling costs a redesign of the part that sets the whole product's shape.
Sources
Frequently asked questions
Is 800x600 enough for VR content?
It depends on the field of view the optics deliver. Spread over a moderate field of view it supports interface elements, video and navigation comfortably. Over a wide immersive field of view the angular size of each pixel grows and fine text becomes harder to read, so the pixel count has to be judged against the field of view rather than on its own.
Why does refresh rate matter in a headset if the eye cannot see individual frames?
Because it sets how quickly the image can respond to head movement. A higher refresh reduces the granularity of that response, which lowers perceived latency and helps the image stay locked to the world. The benefit only appears if the sensors and the rendering pipeline are fast enough to supply new frames that often.
Should I choose an RGB, MIPI or I2C interface?
Choose the interface your host can actually drive. A parallel RGB link suits hosts with a display peripheral and simple timing expectations, a serial display interface suits hosts with the matching controller, and a control interface such as I2C is useful for configuration. If the panel supports more than one, pick the one that keeps the cable and board area smallest.
What causes dim corners in a near-eye display?
Usually geometry rather than the panel. If the panel is larger than the lens image circle, the corners lose light and the effect looks like poor panel uniformity. Measure the assembled optical stack before blaming the module, and check the panel position against the designed back focal distance.
